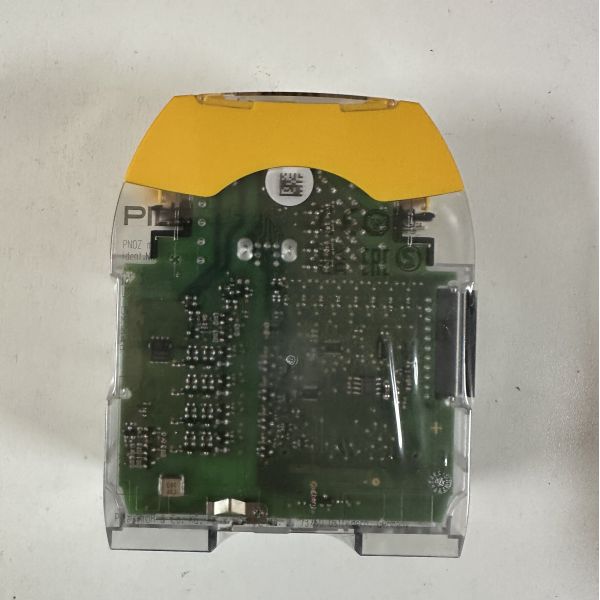

Pilz 772100 | PNOZmulti 2 Base Unit, 24V DC, Configurable Safety Controller
Pilz 772100 PNOZmulti 2 base unit. 24V DC supply, 20 safe inputs, 4 safe semiconductor outputs, configurable safety logic. DIN rail mount.
Product Overview
The Pilz 772100 is the base unit for the PNOZmulti 2 configurable safety controller system. It serves as the central processing module for building modular machine safety systems. Operating on 24V DC, it provides 20 safe digital inputs and 4 safe semiconductor outputs. This unit is designed for flexible expansion with PNOZmulti 2 I/O modules and is programmed via PNOZmulti Configurator software to implement safety functions such as E-STOP, safety gates, and two-hand control.
Technical Specifications (Electrical & Functional)
| Parameter | Specification |
| Product Family | PNOZmulti 2 (Configurable Safety System) |
| Article Number | 772100 |
| Supply Voltage U1 | 24 V DC (System Power) |
| Supply Voltage U2 | 24 V DC (Output Power) |
| Safe Digital Inputs | 20 |
| Safe Semiconductor Outputs | 4 |
| Configurable I/O | 8 (Non-safe, for standard functions) |
| Safety Standards | EN ISO 13849-1 (PL e), EN/IEC 62061 (SIL CL 3) |
| Safety Logic | Configurable (Software-based) |
Technical Specifications (Mechanical & Environmental)
| Parameter | Specification |
| Mounting | DIN Rail (35 mm x 7.5/15 mm) |
| Dimensions (W x H x D) | 45 x 101.4 x 120 mm |
| Weight | Approx. 235 g |
| Operating Temperature | 0 °C ... +60 °C |
| Storage Temperature | -25 °C ... +70 °C |
| Protection Rating | IP20 (Terminals), IP40 (Housing) |
| Connection | Plug-in Screw Terminal / Spring Clamp |
| Housing Material | Polycarbonate (PC) |
Key Features
-
Modular Expandability: Base unit for the PNOZmulti 2 system, allowing expansion with additional I/O modules (e.g., 772101, 772110) for larger safety applications.
-
High Safety Level: Capable of achieving Performance Level e (PL e) and SIL 3 depending on the configuration and wiring.
-
Integrated Logic: Replaces multiple standalone safety relays with a single programmable unit, reducing cabinet space and wiring complexity.
Applications
-
Machine safety control systems (E-STOP circuits, safety door monitoring)
-
Presses, robots, and automated production lines
-
Retrofit and modernization of safety circuits
